Pull-out bottle basket COMPACT
Line
COMPACT
Finish
Anthracite Steel / Anthracite Melamine
Chrome Steel / White Melamine
Visualize
360º
360º
Visualize
360º
360º
Observations
With melamine base. Grass, Hettich or Blum runners. With soft closing and full extension. Maximum load 30 kg. Adjustable for 16 to 19 mm cabinet thickness.

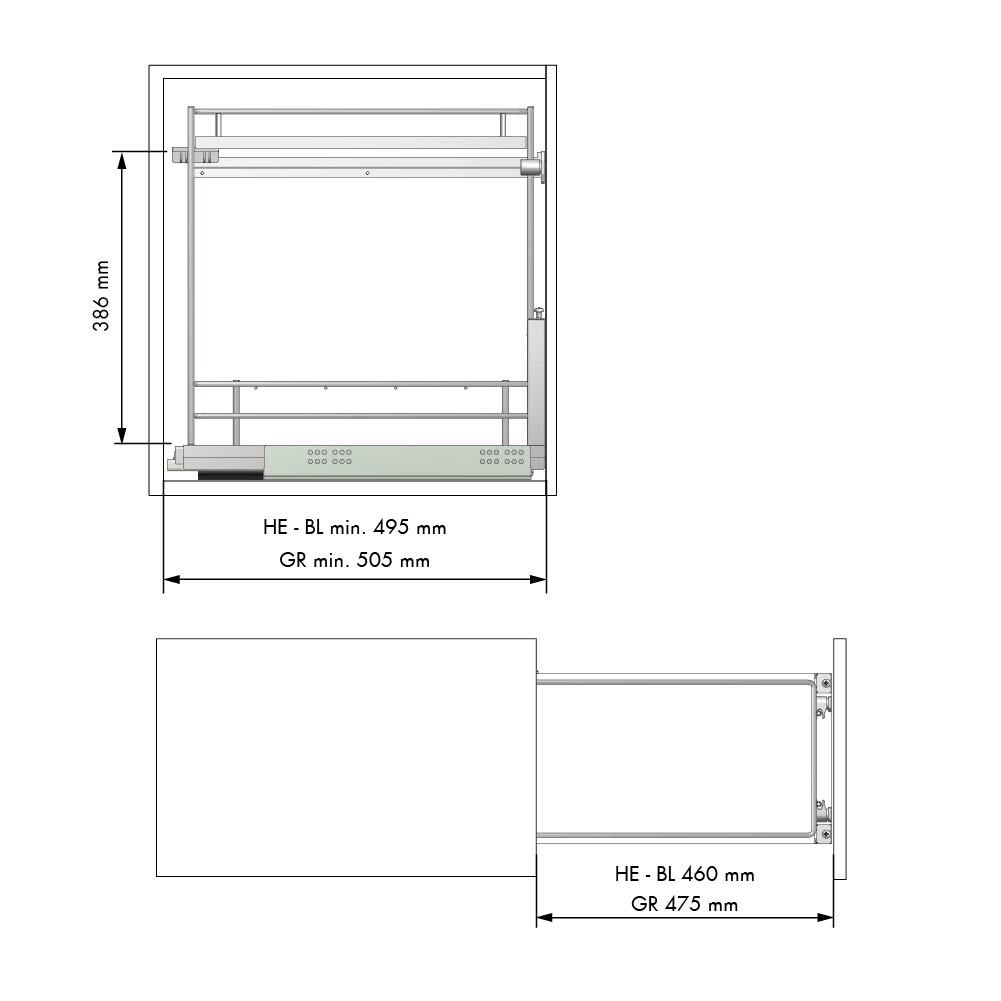

| Reference | FINISH | FRONT (mm) | RUNNERS | Dimensions (mm) | |
|---|---|---|---|---|---|
| 44303014 | Chrome Steel / White Melamine | 300 | Gr | 262-268D x 504H x 496L | |
| 44303007 | Anthracite Steel / Anthracite Melamine | 300 | Gr | 262-268D x 504H x 496L | |
| 48303014 | Chrome Steel / White Melamine | 300 | He | 262-268D x 486H x 490L | |
| 48303007 | Anthracite Steel / Anthracite Melamine | 300 | He | 262-268D x 486H x 490L | |
| 47303014 | Chrome Steel / White Melamine | 300 | Bl | 262-268D x 486H x 490L | |
| 47303007 | Anthracite Steel / Anthracite Melamine | 300 | Bl | 262-268D x 486H x 490L | |
| 44304014 | Chrome Steel / White Melamine | 400 | Gr | 362-368D x 504H x 496L | |
| 44304007 | Anthracite Steel / Anthracite Melamine | 400 | Gr | 362-368D x 504H x 496L | |
| 48304014 | Chrome Steel / White Melamine | 400 | He | 362-368D x 486H x 490L | |
| 48304007 | Anthracite Steel / Anthracite Melamine | 400 | He | 362-368D x 486H x 490L | |
| 47304014 | Chrome Steel / White Melamine | 400 | Bl | 362-368D x 486H x 490L | |
| 47304007 | Anthracite Steel / Anthracite Melamine | 400 | Bl | 362-368D x 486H x 490L |
